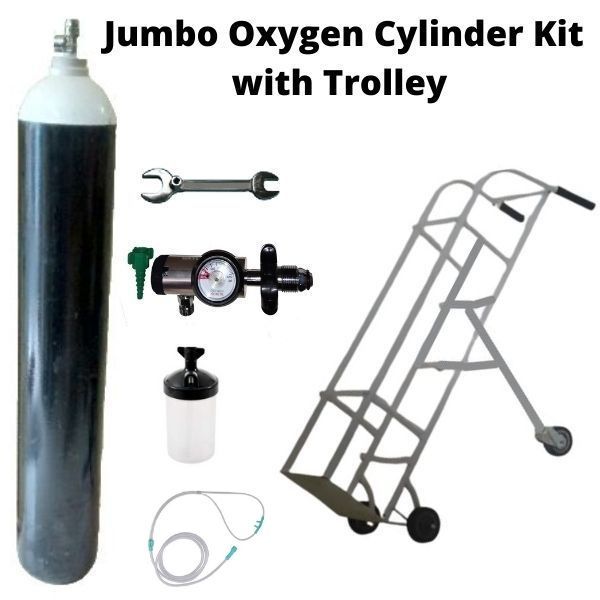

Jumbo Oxygen Cylinder Kit with Click Type Regulator & Trolley
₹35,500.00
Complete Jumbo Oxygen Cylinder Kit is biggest oxygen cylinder kit available with complete accessories, Oxygen Click Type Regulator , Oxygen Humidifier Bottle, Oxygen Nasal Cannula, Spanner and Oxygen Cylinder Trolley for Jumbo Oxygen Cylinder. This oxygen kit is Ideal for Home, Society and Hospitals.
| Other Known Name | Big Oxygen Cylinder, D Type Cylinder, Jumbo Oxygen Cylinder, 7000ltr Cylinder and 7 Cum Cylinder |
| Cylinder Water Capacity | 46.7 Ltr |
| Cylinder Oxygen Capacity | 7000 ltrs (7 Cum) |
| Weight of Cylinder | 51kg(Approx) |
| Height of Cylinder with valve | 1445mm(Approx) |
| Diameter of Cylinder (Outer) | 232mm (Approx) |
| Cylinder working duration/Last | 48hrs @ 2 lpm |
| Cylinder Gas Type | Medical Oxygen |
| Ideal use of Cylinder | Hosptial, Ambulance, Clinic & Home Use |
| Working pressure of Cylinder | 150kg/cm2 at 15 degree Celsius |
| Cylinder Test Pressure | 250kg/cm2 at 15 degree Celsius |
| Cylinder Wall thickness | 5.5 mm |
| Standard | IS 7825 part II |
| Cylinder Valve | IS 3224 |
| Certified by Dept of Explosives | GOI (PESO) |
In Stock
Description
Jumbo Oxygen Cylinder contains : Approx. 7000 ltr of Oxygen, it is D type / 200 cft. Oxygen Jumbo oxygen cylinders are color coded, to be used for oxygen only. Jumbo Cylinder with black body is used for Industrial purpose and black body with white neck is used for Medical Purpose. Filling permission issued from PESO (Department of Explosives), Click style oxygen regulator, Oxygen Humidifier Bottles, Oxygen Nasal Cannula, Oxygen Cylinder Trolley for Jumbo Cylinder, and Oxygen Cylinder Spanner (Key)
Technical Specification :
- Water Capacity : 46.7 Ltr
- Oxygen Capacity : 7000 ltrs (7 Cum)
- Working pressure (Minimum) : 150kg/cm2 at 15oc
- Test Pressure (minimum) : 250kg/cm2 at 15oc
- Wall thickness (minimum) : 5.5 mm minimum
- Gas specify : Oxygen
- Standard : IS 7825 part II
- Valve : IS 3224
- Statutory certifications: ISI Standards
- Certified by Dept of Explosives –GOI (PESO)
