Product Description
The Jumbo Oxygen Cylinder 46.7 Ltr (D Type, 200 cft) is designed for ease of use and reliable performance. Constructed with high-quality steel, this cylinder offers durability and safety in handling. Equipped with a trolley, it ensures effortless mobility, making it ideal for applications requiring frequent transport. Its ergonomic design and clear markings enhance convenience, while the robust valve system supports controlled usage. Perfect for environments where a large-capacity cylinder is required, it provides a secure and portable solution.
| Other Known Name | Big Oxygen Cylinder, D Type Cylinder, Jumbo Oxygen Cylinder, 7000ltr Cylinder and 7 Cum Cylinder |
| Cylinder Water Capacity | 46.7 Ltr |
| Cylinder Oxygen Capacity | 7000 ltrs (7 Cum) |
| Weight of Cylinder | 51kg(Approx) |
| Height of Cylinder with valve | 1445mm(Approx) |
| Diameter of Cylinder (Outer) | 232mm (Approx) |
| Cylinder working duration/Last | 48hrs @ 2 lpm |
| Cylinder Gas Type | Medical Oxygen |
| Ideal use of Cylinder | Hosptial, Ambulance, Clinic & Home Use |
| Working pressure of Cylinder | 150kg/cm2 at 15 degree Celsius |
| Cylinder Test Pressure | 250kg/cm2 at 15 degree Celsius |
| Cylinder Wall thickness | 5.5 mm |
| Standard | IS 7825 part II |
| Cylinder Valve | IS 3224 |
| Certified by Dept of Explosives | GOI (PESO) |

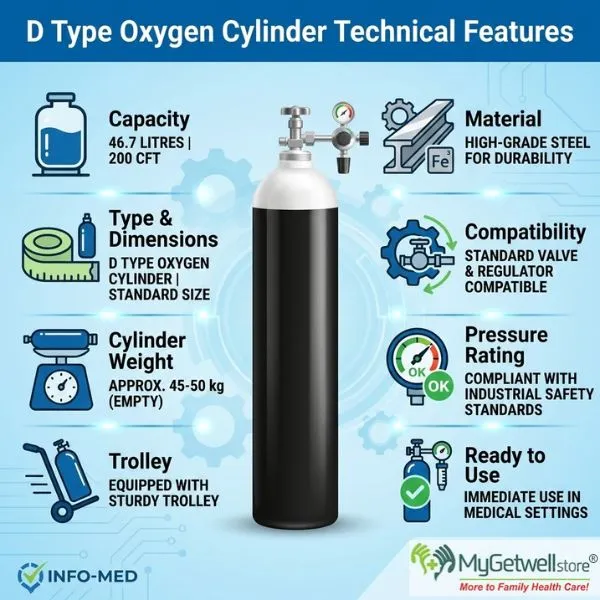

Technical Features
Cylinder Capacity: 46.7 Litres / 200 cft
Type: D-Type Oxygen Cylinder
Weight: Approx. 45-50 kg (empty)
Material: High-grade steel for durability
Equipped with a sturdy trolley for easy movement
Standard valve and regulator compatibility
Pressure Rating: Compliant with industrial safety standards
Dimensions: Standard D-Type cylinder size

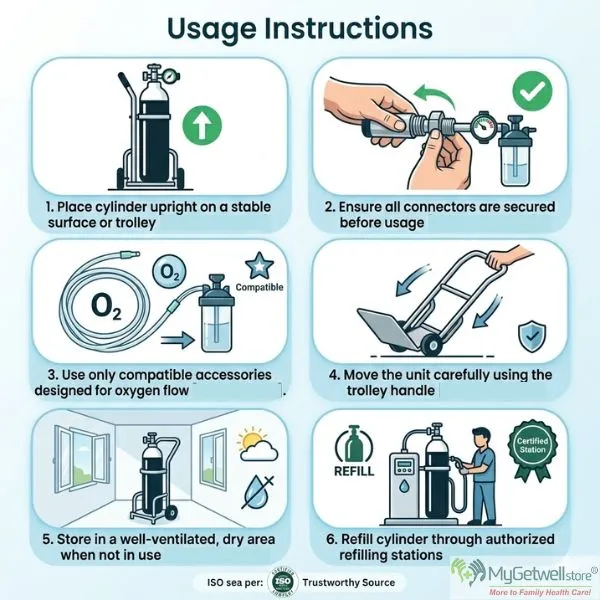

Usage Instructions
Secure the cylinder in an upright position.
Attach the regulator before use.
Use the trolley to move the cylinder safely.
Store in a well-ventilated area, away from heat sources.
Ensure the valve is fully closed when not in use.
Safety Disclaimer
This product is intended for non-medical oxygen storage and transportation purposes only. Handle with care. Follow all safety instructions provided. Not intended to diagnose, treat, cure, or prevent any disease.
FAQ's
The duration depends on the flow rate. At 1 L/min, it can last up to 24-30 hours, while at 5 L/min, it may last around 4-5 hours. Always consult your doctor for the recommended oxygen flow.
D-type cylinders are medium-sized portable cylinders suitable for home use, while larger cylinders (like E or H type) are used in hospitals. The 46.7 Ltr D-type cylinder is ideal for extended oxygen supply without frequent refills.
Use a certified oxygen regulator or flow meter compatible with D-type cylinders. Connect the oxygen tubing to the mask or nasal cannula as directed by your healthcare provider.
